CST51L01-B 10.525GHz low power radar module

    CST51L01-B 10.525GHz low-power radar module, working current is only 155uA.
    CST51L01-B microwave induction radar module adopts professional 10.525GHz radar chip, through the high-gain low sidelobed plane microstrip antenna, Pulse radio waves with a fixed frequency of 10.525GHz±125Mhz are emitted to the induction region, and all reflected radio waves in the region are received, which are converted by the mixing circuit of the module into differential frequency electrical signals; According to the principle of Doppler effect, the high performance digital signal recognition algorithm is used to analyze whether there is a moving target in the region. CST51L01-B module can be widely used in lighting, security, home, home appliances, IOT devices and other products that need to detect human movement, add intelligent perception function to the device, and bring users excellent perception experience
    CST51L01-B Overview:
        CST51L01-B 10.525GHz low-power radar module, with a working current of only 155uA.
        The CST51L01-B microwave induction radar module adopts a professional 10.525GHz radar chip. Through a high gain low sidelobe planar microstrip antenna, it emits fixed frequency 10.525GHz ± 125Mhz pulse radio waves to the induction area and receives all reflected radio waves in the area. The module‘s mixing circuit converts them into differential frequency electrical signals; Based on the principle of Doppler effect and processed by high-performance digital signal recognition algorithms, analyze whether there are moving targets in the area. The CST51L01-B module can be widely used in lighting, security, home furnishings, home appliances, IoT devices and other products that need to detect human movement, adding intelligent perception functions to the devices and bringing users an excellent perception experience.

    CST51L01-B Features:
    * Motion detection
      Can detect movements such as walking, jogging, sprinting, spinning, and high jump

    CST51L01-B Product characteristics:
    * Strong interference suppression ability
       Can avoid co frequency interference and support intensive use; Multiple digital signal processing algorithms can suppress power frequency clutter, high-order harmonic interference, and sudden interference, and effectively filter out some interfering materials such as curtains, fans, and air conditioners
    * Flexible parameter configuration
       Flexible configuration of parameters such as sensing distance, output delay time, and light sensitivity can be achieved through serial ports, facilitating user development, on-site testing, and adaptation to different application scenarios
    * High performance antenna
      Optimized design of planar microstrip antenna with high gain, low sidelobes, and less backward radiation characteristics
    * Reliability
      High sensitivity and strong reliability in sensing targets; Good consistency in mass production
    * Strong penetration
      Can penetrate materials such as glass, plastic, clothing, cotton quilts, ceramics, thin wooden boards, etc
    *Not affected by the environment
      Not affected by environmental factors such as snow, haze, temperature and humidity, dust, light, noise, etc
    * Small size design
      The product size is small, making it more space friendly. Accurate sensing range.

    CST51L01-B Application area:
        Lighting, security, home furnishings, household appliances, bathrooms, hotels, garages, buildings, transportation, IoT, and other areas require detection of human micro movements the industry sector of sports

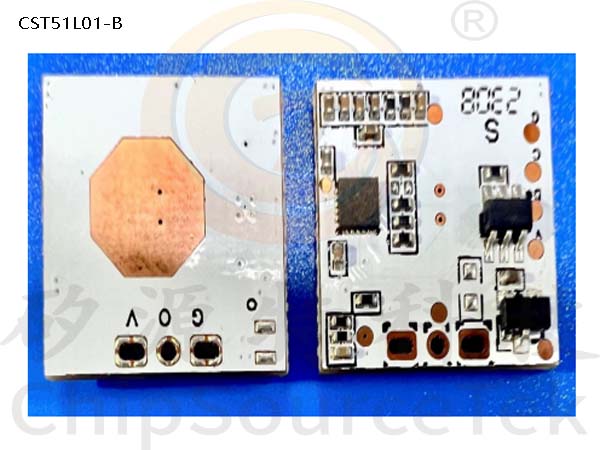

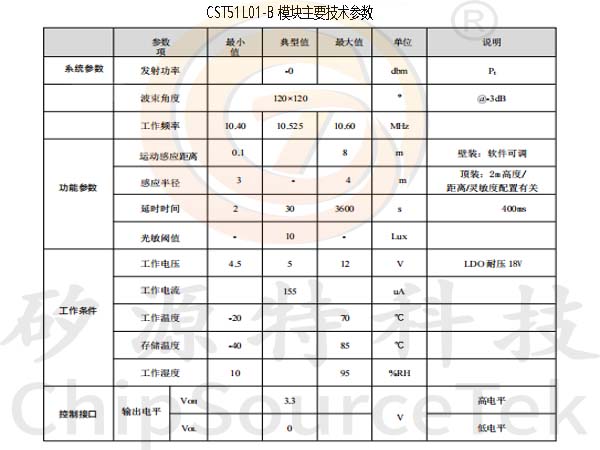

    CST51L01-B Technical Parameter:

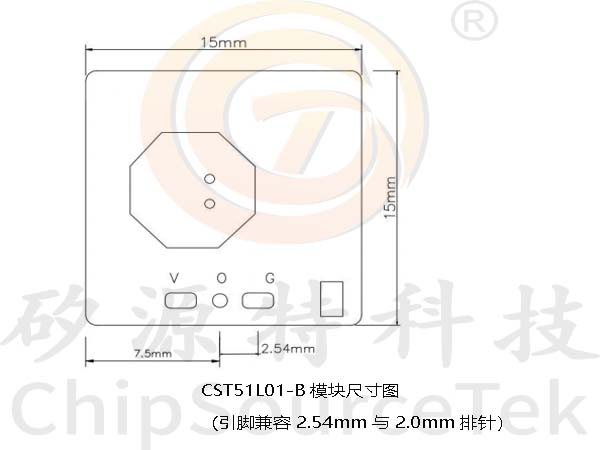

    CST51L01-B Lnterface and size:
    Tip: 1. Due to differences in production batches, module colors and oil caps may vary, but this does not affect related functions and performance
           2. The silk screen surface of the foot position is the antenna surface, which should face the detection area
    Pin number
    Define
    Description
    1
    VIN
    Module power supply
    2
    OUT
    Output signal; Can output I/O switch quantity
    3
    GND
    grounding
