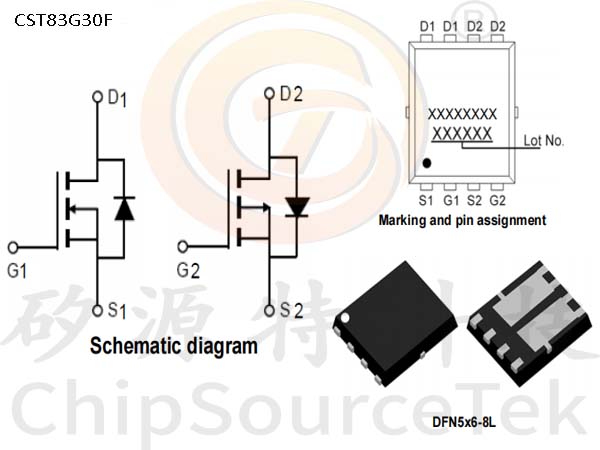

CST83G30F Description:
CST83G30F is an N+P dual channel enhanced mode power supply Mosfet with N-Channel: VDS=30V, ID=30A,RDS(ON)<10.5mΩ@VGS=10V，RDS(ON)<18mΩ@VGS=4.5V； P-Channel: VDS=-30V, ID=-30A，RDS(ON)<22mΩ@VGS=-10V，RDS(ON)<30mΩ@VGS=-4.5V. Provide DFN5x6-8L packaging.
The CST83G30F uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.
CST83G30F General Features:
* N-Channel
* VDS=30V, ID=30A
RDS(ON)<10.5mΩ@VGS=10V
RDS(ON)<18mΩ@VGS=4.5V
* P-Channel
* VDS=-30V, ID=-30A
RDS(ON)<22mΩ@VGS=-10V
RDS(ON)<30mΩ@VGS=-4.5V
* High Power and current handing capability
* Lead free product is acquired
* Surface Mount Package
CST83G30F Application:
* DC motor
* PWM applications

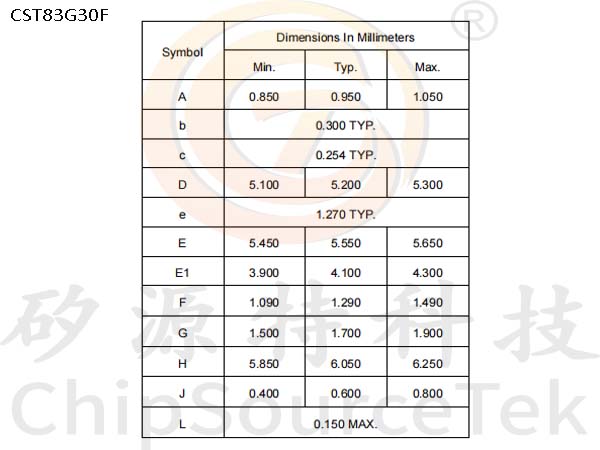

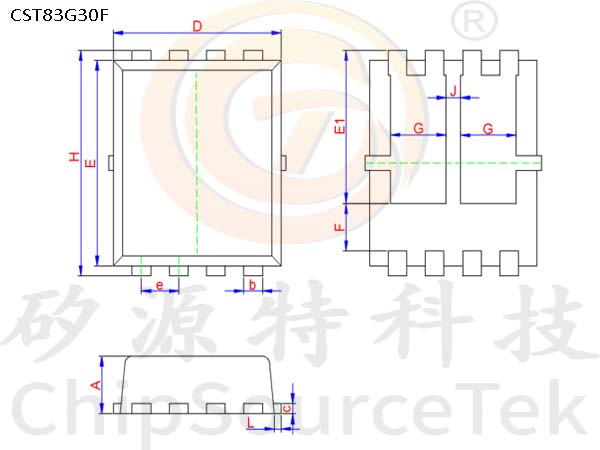

CST83G30F DFN5x6-8L Package Information:
