Multiple Charge

IP2366

    IP2366 is a lithium-ion battery charging and discharging management chip that integrates input/output fast charging protocols such as AFC/FCP/PD2.0/PD3.0/PD3.1, as well as synchronous voltage rise and fall converters, with a charging and discharging power of up to 140W;
    The high integration and rich functionality of IP2366 only require one inductor to achieve synchronous step-down and step-up functions. In application, only a few peripheral devices are needed, effectively reducing the overall size of the solution and lowering BOM costs.
    IP2366 supports 2/3/4/5/6 series cells, and the number of battery series cells can be selected through external resistance settings; IP2366 supports external resistance and can set the battery type, with a fully charged voltage of 3.65V/4.1V/4.2V/4.35V/4.4V.
    IP2366 has a built-in IC temperature, battery NTC temperature, and input voltage control detection loop, which can intelligently adjust the charging current based on the recognized charger power.
    IP2366 supports low-power mode, and after entering low-power mode, the standby current decreases to 5 μ A. After entering low-power mode, inserting a charger can automatically wake up charging, and short press the button to wake up external discharge;
    IP2366 has a built-in 14bit ADC, which can accurately measure input voltage and current, battery voltage and current, etc. IP2366 charging and discharging voltage, charging current, and other information can be obtained through I2C.
    IP2366 supports 4 battery indicator lights, which can display the battery level and charging and discharging status.
    IP2366 Brief Introduction:
        IP2366 is a lithium-ion battery charging and discharging management chip that integrates input/output fast charging protocols such as AFC/FCP/PD2.0/PD3.0/PD3.1, as well as synchronous voltage rise and fall converters, with a charging and discharging power of up to 140W;
        The high integration and rich functionality of IP2366 only require one inductor to achieve synchronous step-down and step-up functions. In application, only a few peripheral devices are needed, effectively reducing the overall size of the solution and lowering BOM costs.
        IP2366 supports 2/3/4/5/6 series cells, and the number of battery series cells can be selected through external resistance settings; IP2366 supports external resistance and can set the battery type, with a fully charged voltage of 3.65V/4.1V/4.2V/4.35V/4.4V.
        IP2366 has a built-in IC temperature, battery NTC temperature, and input voltage control detection loop, which can intelligently adjust the charging current based on the recognized charger power.
        IP2366 supports low-power mode, and after entering low-power mode, the standby current decreases to 5 μ A. After entering low-power mode, inserting a charger can automatically wake up charging, and short press the button to wake up external discharge;
        IP2366 has a built-in 14bit ADC, which can accurately measure input voltage and current, battery voltage and current, etc. IP2366 charging and discharging voltage, charging current, and other information can be obtained through I2C.
        IP2366 supports 4 battery indicator lights, which can display the battery level and charging and discharging status.

    IP2366 Features:
    *Charging and discharging specifications
      -Integrated Buck-BOOST Boost Power NMOS Driver
      -Maximum charging and discharging power of 140W
      -Adaptive charging current regulation
      -The external resistor can be set to the type of battery, with a fully charged voltage of 3.65V/4.1V/4.2V/4.35V/4.4V
      -External resistor setting for battery series connection: 2/3/4/5/6
      -The external resistor can be set to the maximum charging and discharging power, supporting a maximum of 140W charging and discharging
    *Fast charging specifications
      -Integrated FCP input-output fast charging protocol
      -Integrated AFC input-output fast charging protocol
      -Integrated DRP Try SRC protocol, PD3.1 input-output fast charging protocol
      -Integrated QC2.0/QC3.0/QC3.0+output fast charging protocol
    *Other functions
      -4/2/1 LED battery indicator light
      -Customized support for I2C function
      -Standby power consumption 5 μ A
      -EN wake-up function
    *Multiple protection and high reliability
      -Input overvoltage and undervoltage protection
      -Output overcurrent and short circuit protection
      -Battery overcharging, discharging, and overcurrent protection
      -IC over temperature protection
      -Temperature NTC protection for charging and discharging batteries
      -ESD 4KV, input (including CC1/CC2 pins) withstand voltage of 30V
    *Packaging specification: 5mm × 5mm 0.4pitch QFN40

    IP2366 Application products:
    2-6 series lithium batteries/lithium iron phosphate batteries for charging and discharging

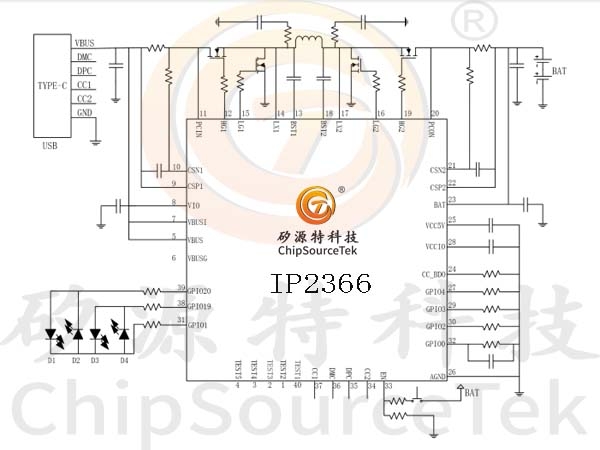

    IP2366 Simplified application schematic:

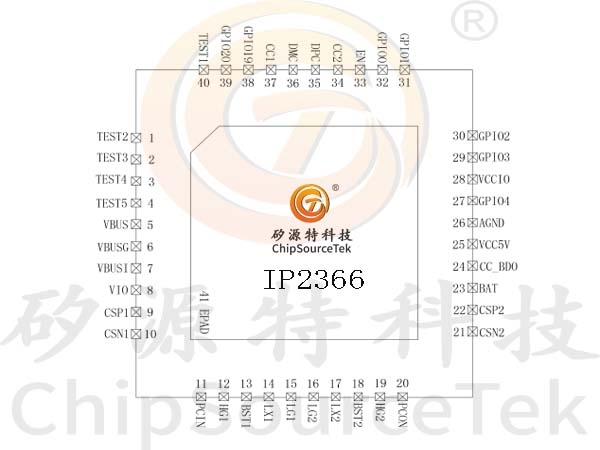

    IP2366 Pin Definition:
    IP2366 Internal block diagram of the chip:

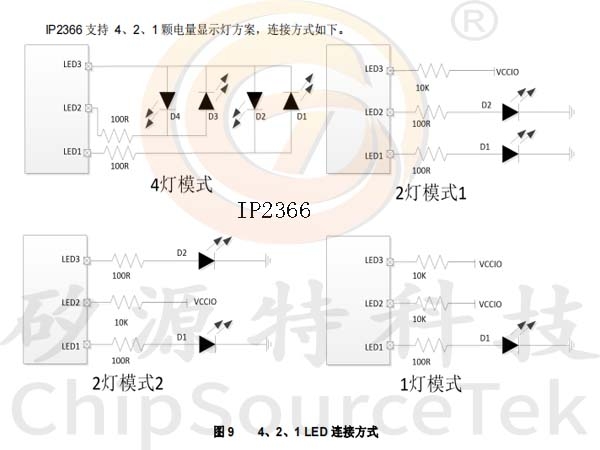

    IP2366 Light display function:

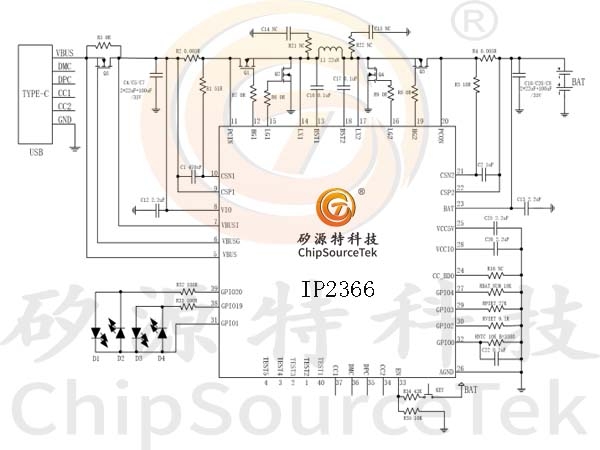

    IP2366 Application schematic diagram:
