MCU

NY8A051G

    NY8A051G is an EPROM based 8-bit MCU, RISC architecture is applied to NY8A051G and it provides 55 instructions.
    As NY8A051G address I/O type applications.
    NY8A051G also provides 2 sets of timers which can be used as regular timer based on system oscillation or event counter with external trigger clock.
    NY8A051G employs dual-clock oscillation mechanism.
    NY8A051G build in Crystal Load Capacitance (only for 32768Hz) and user can choose four options of CL (Disable, 7pF, 9pF and 12.5pF). It is convenient for user to get precise PPM without external capacitor。
    NY8A051G build in large drive & sink current at PB0/PB1/PB2 (20mA~220mA@5V by six options). The NY8A051G adds an internal Pull High resistor 85KΩ at PB3 (VPP) and can be controlled to Enable / Disable by program.
    NY8A051G General Description:
        NY8A051G is an EPROM based 8-bit MCU tailored for I/O based applications like remote controllers, fan/light controller, game controllers, toy and various controllers. NY8A051G adopts advanced CMOS technology to provide customers remarkable solution with low cost and high performance benefits. RISC architecture is applied to NY8A051G and it provides 55 instructions. All instructions are executed in single instruction cycle except program branch and skip instructions which will take two instruction cycles. Therefore, NY8A051G is very suitable for those applications that are sophisticated but compact program size is required.
        As NY8A051G address I/O type applications, it can provide 6 I/O pins for applications which require abundant input and output functionality. Moreover, each I/O pin may have additional features, like Pull-High/Pull-Low resistor and open-drain output type through programming. Moreover, NY8A051G has built-in infrared (IR) carrier generator with selectable IR carrier frequency and polarity for applications which demand remote control feature.
        NY8A051G also provides 2 sets of timers which can be used as regular timer based on system oscillation or event counter with external trigger clock. Moreover, NY8A051G provides 1 set of 8-bit resolution Pulse Width Modulation (PWM) output and buzzer output in order to drive motor/LED and buzzer.
        NY8A051G employs dual-clock oscillation mechanism, both high oscillation or low oscillation can be derived from internal resistor/capacitor oscillator. Moreover, based on dual-clock mechanism, NY8A051G provides kinds of operation mode like Normal mode, Slow mode, Standby mode and Halt mode in order to save power consumption and lengthen battery operation life. Moreover, it is possible to use internal high-frequency oscillator as CPU operating clock source and external 32KHz crystal oscillator as timer clock input, so as to accurate count real time and maintain CPU working power.
        While NY8A051G operates in Standby mode and Halt mode, kinds of event will issue interrupt requests and can wake-up NY8A051G to enter Normal mode and Slow mode in order to process urgent events.
        NY8A051G build in Crystal Load Capacitance (only for 32768Hz) and user can choose four options of CL (Disable, 7pF, 9pF and 12.5pF). It is convenient for user to get precise PPM without external capacitor。
        NY8A051G build in large drive & sink current at PB0/PB1/PB2 (20mA~220mA@5V by six options). The NY8A051G adds an internal Pull High resistor 85KΩ at PB3 (VPP) and can be controlled to Enable / Disable by program.

    NY8A051G Features:
     Wide operating voltage range:
         2.0V ~ 5.5V @system clock ≦8MHz.
         2.2V ~ 5.5V @system clock >8MHz.
     Wide operating temperature: -40°C ~ 85°C.
     High ESD over ±5KV.
     1K x 14 bits EPROM.
     48 bytes SRAM.
     6 general purpose I/O pins (GPIO), PB[5:0], with independent direction control.
     PB[3:0] has features of Pull-High and Pull-Low resistor for input pin.
     PB[5:0] has features of Pull-High resistor, and open-drain output.
     VIH / VIL has three types to choose (TTL / CMOS / Without Schmitt).
     PB[3] built-in Pull-High resistor 85K.
     8-level hardware Stack.
     Direct and indirect addressing modes for data access.
     One 8-bit up-count timer (Timer0) with programmable prescaler.
     One 8-bit reload or continuous down-count timers (Timer1).
     One 8-bit resolution PWM (PWM1) output.
     One buzzer (BZ1) output.
     Selectable 38/57KHz IR carrier frequency and high/low polarity according to data value.
     Built-in Power-On Reset (POR).
     Built-in Low-Voltage Reset (LVR).
     Built-in Watch-Dog Timer (WDT) enabled/disabled by firmware control.
     Dual-clock oscillation: System clock can switch between high oscillation and low oscillation.
         High oscillation: I_HRC (Internal High Resistor/Capacitor Oscillator ranging from 1M~20MHz)
         Low oscillation:  I_LRC (Internal 32KHz oscillator)
                                       E_LXT (External Low Crystal Oscillator, 32768Hz)
     Four kinds of operation mode to reduce system power consumption:
     Normal mode, Slow mode, Standby mode and Halt mode.
     Five hardware interrupt events:
     Timer0 overflow interrupt.
     Timer1 underflow interrupt.
     WDT timeout interrupt.
     PB input change interrupt.
     External interrupt.
     Five interrupt events to wake-up NY8A051G from Standby mode:
     Timer0 overflow interrupt.
     Timer1 underflow interrupt.
     WDT timeout interrupt.
     PB input change interrupt.
     External interrupt.
     Three interrupt events to wake-up NY8A051G from Halt mode: ? WDT timeout interrupt.
     PB input change interrupt.
     External interrupt.

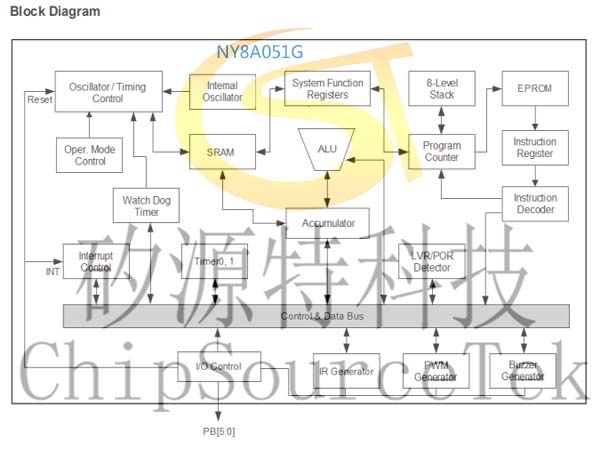

    NY8A051G Block Diagram:

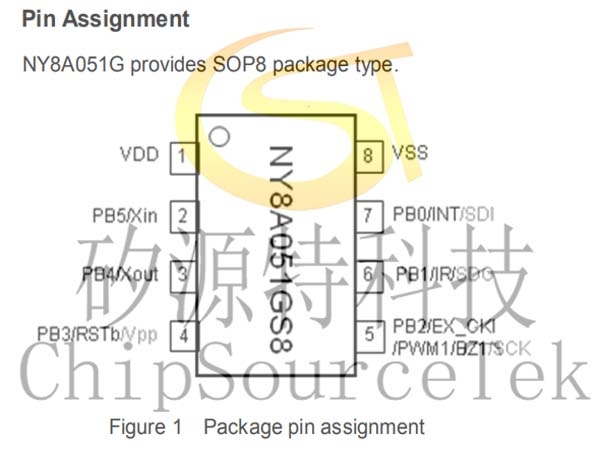

    NY8A051G Pin Assignment
    NY8A051G provides SOP8 package type.




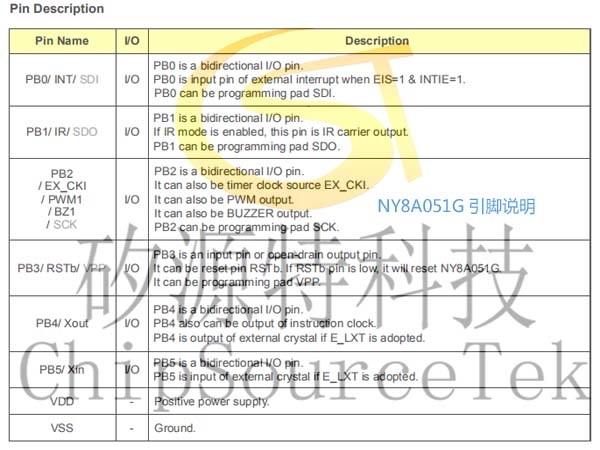

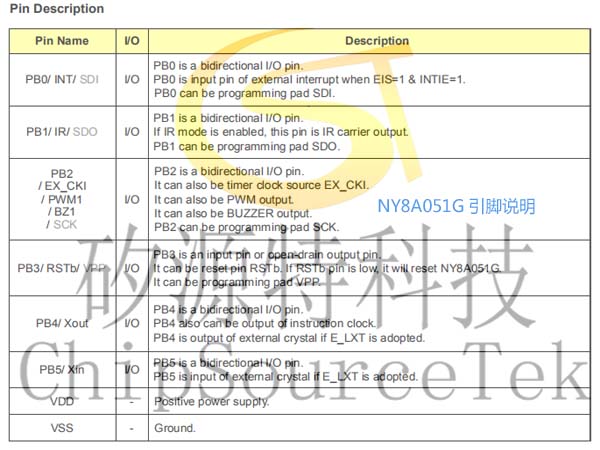

    Pin Description:
