SC85XX,SC8530.SC8533,SC8536,SC8544,SC8550 Description:
SC85xx series a low-power high-voltage regulator manufactured by CMOS process. The maximum input voltage is 40V and the output voltage range is 3.0V~5.0V.It has the characteristics of high precision output voltage, very low power supply current and very low drop voltage.SC8530.SC8533,SC8536,SC8544,SC8550
SC85XX,SC8530.SC8533,SC8536,SC8544,SC8550 Features:
* Low power consumption:3uA(Typ)
* Low drop voltage:60mV(Typ)
* Low temperature coefficient:1mV/℃(Typ)
* High input voltage:up to 40V
* High precision output voltage: tolerance of 3%
* Package form:SOT23-3,SOT89-3,TO92
SC85XX,SC8530.SC8533,SC8536,SC8544,SC8550 Device Information:
|
PART
NUMBER
|
INPUT
VOLTAGE
(MAX)(V)
|
OUTPUT
（V）
|
PACKAGE
|
|
SC8530
SC8533
SC8536
SC8544
SC8550
|
40
|
3.0
3.3
3.6
4.4
5.0
|
SOT23
SOT89
TO92
|
SC85XX,SC8530.SC8533,SC8536,SC8544,SC8550 Applications：
Battery power supply equipment
Audio/video equipment
Various communication equipment
Security monitoring equipment

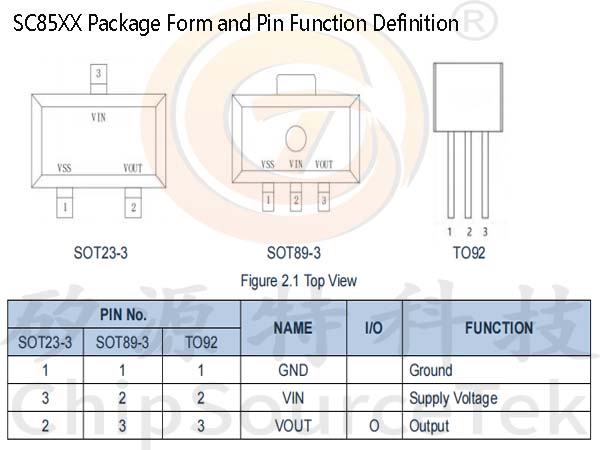

SC85XX,SC8530.SC8533,SC8536,SC8544,SC8550 Package Form and Pin Function Definition：

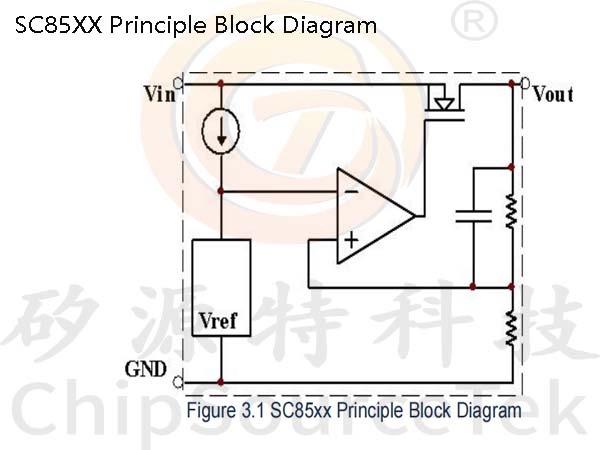

SC85XX,SC8530.SC8533,SC8536,SC8544,SC8550 Principle Block Diagram：

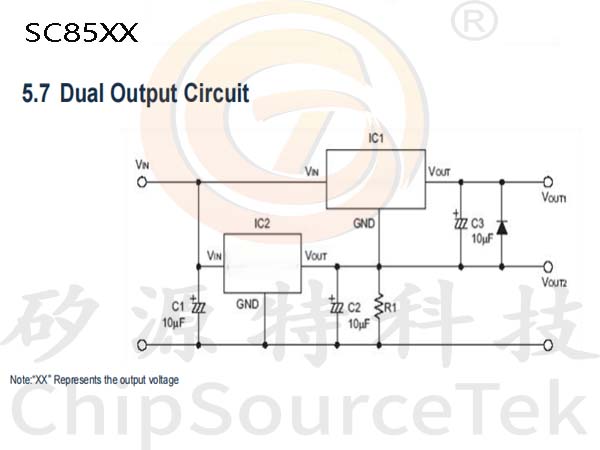

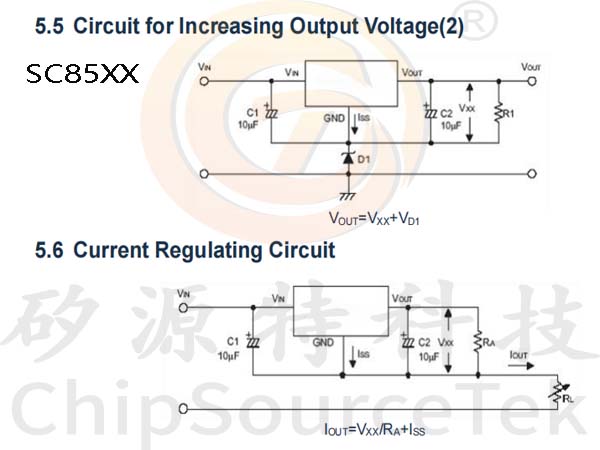

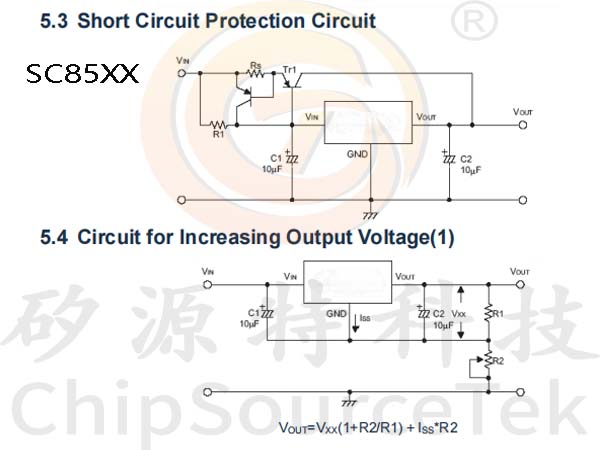

SC85XX,SC8530.SC8533,SC8536,SC8544,SC8550 Applications Information：
SC85XX,SC8530.SC8533,SC8536,SC8544,SC8550 Ordering Information：
|
Orderable Device
|
Package Type
|
Pins
|
Packing
|
Package Qty
|
|
SC85xxST03ARCQ
|
SOT23
|
3
|
Tape & Reel
|
3000
|
|
SC85xxGT03ARAQ
|
SOT89
|
3
|
Tape & Reel
|
1000
|
|
SC85xxKW03ABAQ
|
TO92
|
3
|
Bag
|
1000
|
