ME6207

    The ME6207 Series is a positive voltage regulator with a low dropout voltage,high output voltage accuracy,and low crrent consumption developed based on CMOS technology.
    A built-in low on-resistance transistor provides a low dropout voltage and large output current, a built-in overcurrent protector prevents the load current from exceeding the current capacitance of the output transistor.  An ON/OFF circuit ensures a long battery life. Compared with the voltage regulators using  the conventional CMOS process, a larger variety of capacitors are available, including small ceramic capacitors.
    ME6207 Description/概述:
        The ME6207 Series is a positive voltage regulator with a low dropout voltage,high output voltage accuracy,and low crrent consumption developed based on CMOS technology.
        A built-in low on-resistance transistor provides a low dropout voltage and large output current, a built-in overcurrent protector prevents the load current from exceeding the current capacitance of the output transistor.  An ON/OFF circuit ensures a long battery life. Compared with the voltage regulators using  the conventional CMOS process, a larger variety of capacitors are available, including small ceramic capacitors.

    ME6207 Features/特性:
    Maximum Output Current:
      800mA(VIN≥VOUT(T)+1.0V)
    Dropout Voltage:
      100mV@ IOUT =300mA,VOUT =5.0V
    Operating Voltage Range: 2V~6.5V
    Highly Accuracy: ±1%
    Low Current Consumption:
      During Operation: 82uA(TYP.)
      During Shutdown:0.1uA(TYP.)
    High Ripple Rejection: 65dB@1KHz (ME6207C50)
    Line Regulation: 0.05%(TYP.)

    ME6207 Applications/应用:
    Power supply for DVD and CD-ROM drives
    Power supply for personal communication device
    Power supply for battery-powered devices
    Power supply for note PCs

    ME6207 Package/封装:
    3-pin SOT89-3
    5-pin SOT89-5,SOT23-5,TO252-5

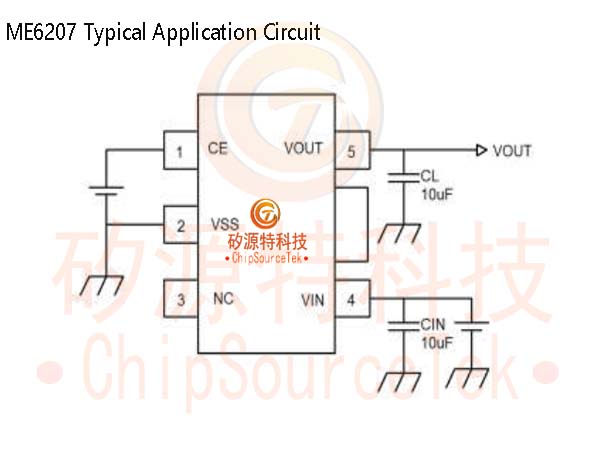

    ME6207 Typical Application Circuit/典型应用电路:

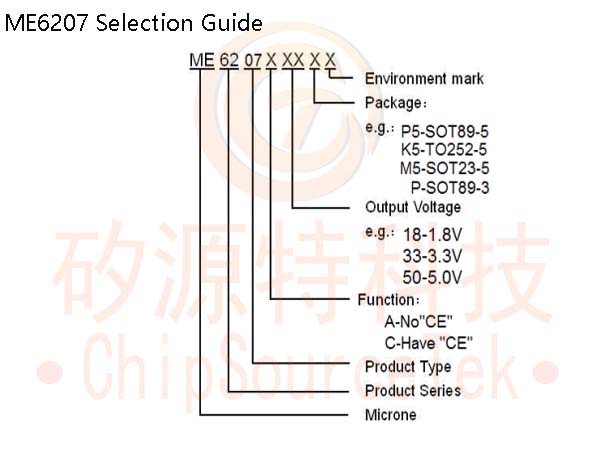

    ME6207 Selection Guide/选择指南:

    product series
    product description
    ME6207A50PG
    VOUT =5.0V;no enable function;Package:SOT89-3
    ME6207C18M5G
    VOUT =1.8V; have enable function;Package:SOT23-5
    ME6207C33M5G
    VOUT =3.3V; have enable function;Package:SOT23-5
    ME6207C50K5G
    VOUT =5.0V; have enable function;Package:TO252-5
    ME6207C50M5G
    VOUT =5.0V; have enable function;Package:SOT23-5
    ME6207C50P5G
    VOUT =5.0V; have enable function;Package:SOT89-5

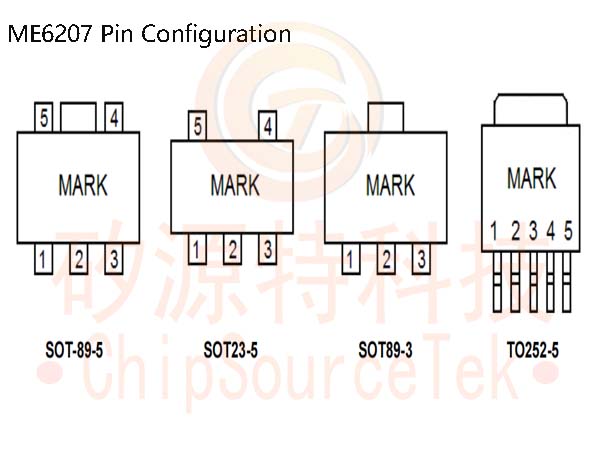

    ME6207 Pin Configuration/引脚配置:

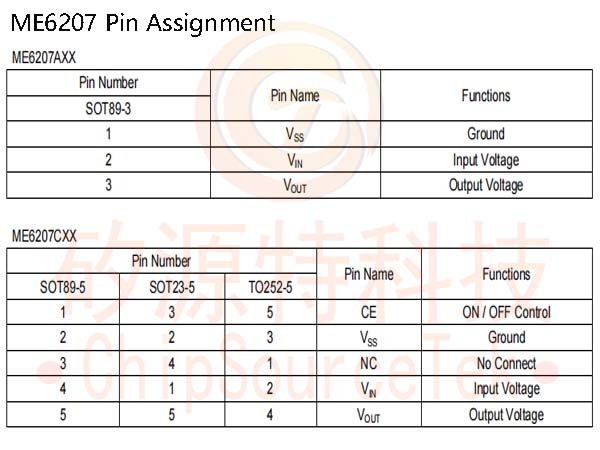

    ME6207 Pin Assignment/管脚分配:

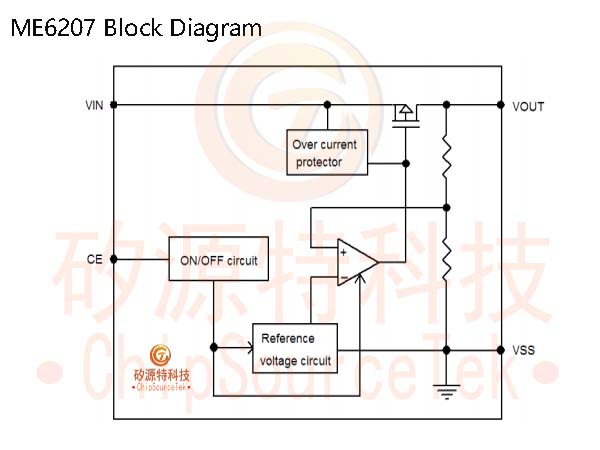

    ME6207 Block Diagram/结构框图:
