CST6206

    6206 series are a highly precise, lower consumption, 3 terminal,positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage .

    The 6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V.

    6206 series are available in SOT-23 、SOT23-3and SOT-89 packages.
    CST6206 General Description:
        6206 series are a highly precise, lower consumption, 3 terminal,positive voltage regulators manufactured using CMOS and laser trimming technologies. The series provides large currents with a significantly small dropout voltage .
        The 6206 consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter’s foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin. Output voltages are internally by laser trimming technologies. It is selectable in 0.1V increments within a range of 1.2V to 5.0V.
        6206 series are available in SOT-23 、SOT23-3and SOT-89 packages.

    CST6206 Features:
    Low power consumption
    Low voltage drop
    Low temperature coefficient
    Low Quiescent Current: 3uA at 6V
    Output voltage accuracy: tolerance ±2%
    CST6206 Applications:
    Battery-powered equipment
    Reference voltage sources
    Cameras,video cameras
    Portable AV systems
    Mobile phones
    Portable games

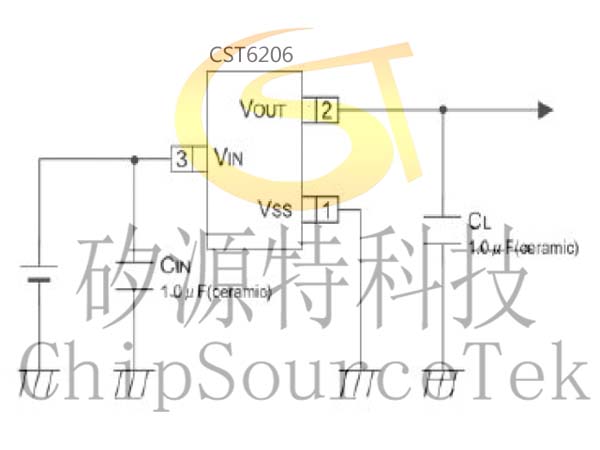

    CST6206 Typical Application:
    CST6206 Order Information:
    CST6206①②③④
    Designator
    Symbol
    Description
    ①②
    Integer
    Output Voltage(1.2~5.0V)
    N
    Package:SOT23
    M
    Package:SOT23-3
    P
    Package:SOT89A
    P1
    Package:SOT89B
    R
    RoHS/Pb Free
    G
    Halogen Free
    CST6206 Block Diagram:

    CST6206 Pin Assignment:
