CLASS AB/D Switchable Power Amplifier

LPA2101

    LPA2101是一款30W,F类单频音频放大器,AB/D可选模式及AGC功能、能够提供29W的连续平均功率为4ΩBTL负载的失真(THD)小于10%15V直流电源。
    LPA2101工作电压范围:4.3V~15.5V, 550KHz固定频率开关放大器。
    LPA2101设备受到充分保护具有短路保护和热保护保护。
    LPA2110A采用ESOP-8封装。
    LPA2101概述:
        The LPA2101 is a 30W, class F mono audio amplifier integrated Class AB/D optional mode and AGC function. It is capable of delivering 29watts of continuous average power to a 4Ω BTL load with less than 10% distortion (THD) from a 15V DC power supply. It offers low THD+N, allowing it to achieve high-quality Power Supply sound reproduction.
        The LPA2101 device is fully protected against faults with short-circuit protection and thermal protection. Faults are reported back to the processor to prevent devices form being damaged during overload conditions

    LPA2101特性:
    Wide voltage range: 4.3V~15.5V  550KHz fixed frequency switching for amplifier
    29W Output at 10% THD with a 4Ω Load and 15V VDD for amplifier 19W Output at 10% THD with a 4Ω Load and 12V VDD for amplifier
    Integrated Self-Protection Circuits Including, Under-Voltage, Over-Temperature, and Short Circuit
    High Efficient Class-D Operation: >86%
    Filterless, Low Quiescent Current and Low EMI
    Pb-Free Package

    LPA2101应用:
    Mini-Micro Component, Speaker Bar, Docks
    After-Market Automotive
    Consumer Audio Applications, CRT TV‘’
    Portable Bluetooth Speaker
    Cellular and Smart mobile phone
    Square Speaker

    LPA2101订购信息:

    Device

    Marking

     Shipping

     Shipping

    LPA2101

    LPS

    LPA2101

     YWX

    ESOP-8

    4000PCS/REEL

    Y: Y is year code. W: W is week code. X: X is series number.

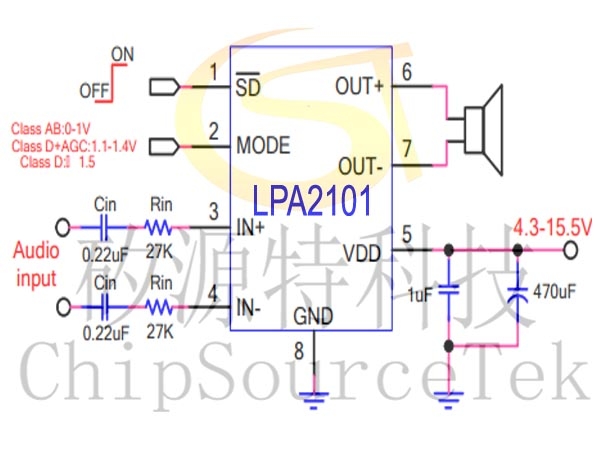

     LPA2101典应用电路图:

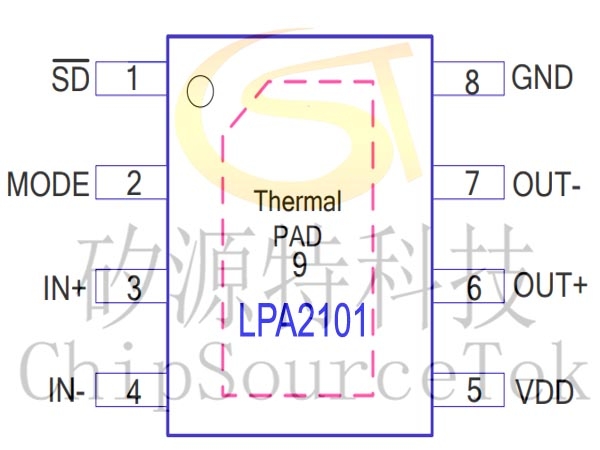

    LPA2101引脚分布:

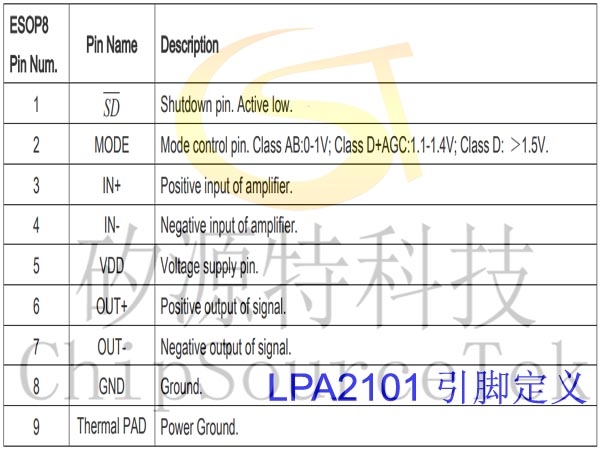

    LPA2101引脚定义:

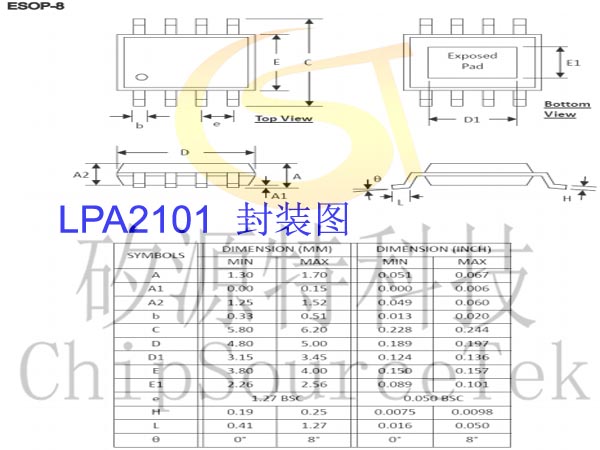

    LPA2101封装图:
