FM8545

   TheFM8545 is very low loss SP4T specifically designed for high performance antenna tuning applications. All RF path performance is enhanced with ultra-low on state resistance and off state capacitance.

    FM8545 allows the creation of advanced tuningtopologies to maximize TRP & TIS performance in space constrained applications.

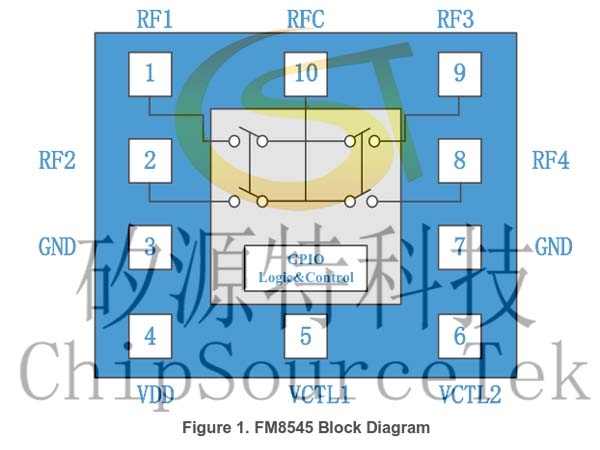

    The FM8545 SP4T tuner is provided in a compact QFN 1.1mm x 1.5mm x 0.5mm package. A functional block diagram is shown in Figure 1.

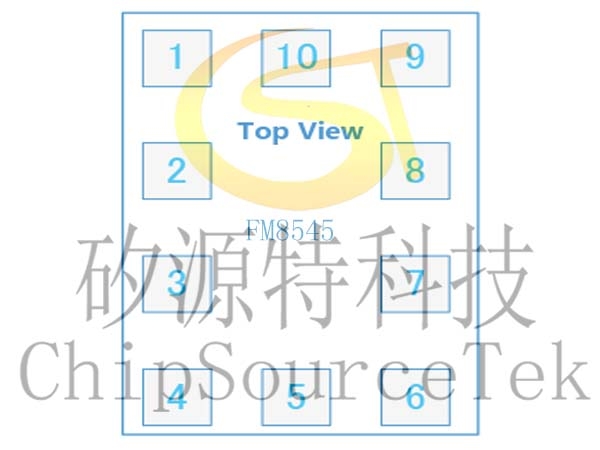

    The pin configuration and package are shown in Figure 2. Signal pin assignments and functional pin description are provided in Table 1
    FM8545概述:
       TheFM8545 is very low loss SP4T specifically designed for high performance antenna tuning applications. All RF path performance is enhanced with ultra-low on state resistance and off state capacitance.
        FM8545 allows the creation of advanced tuningtopologies to maximize TRP & TIS performance in space constrained applications.
        The FM8545 SP4T tuner is provided in a compact QFN 1.1mm x 1.5mm x 0.5mm package. A functional block diagram is shown in Figure 1.
        The pin configuration and package are shown in Figure 2. Signal pin assignments and functional pin description are provided in Table 1

    FM8545
    5特性:
    Very Linear Performance
    Off Ports, ‘open Type’
    Two pin GPIO control Interface for standard SP4T operation
    Very Small 1.1mm x 1.5mm
    Very low profile, 0.5mm
    Ultra-Low On-resistance, 1.0 Ω


    FM8545
    应用:
    Antenna Tuning
    Band Switching
    Impedance Tuning


    FM8545
    功能框图:



    FM8545引脚配置:


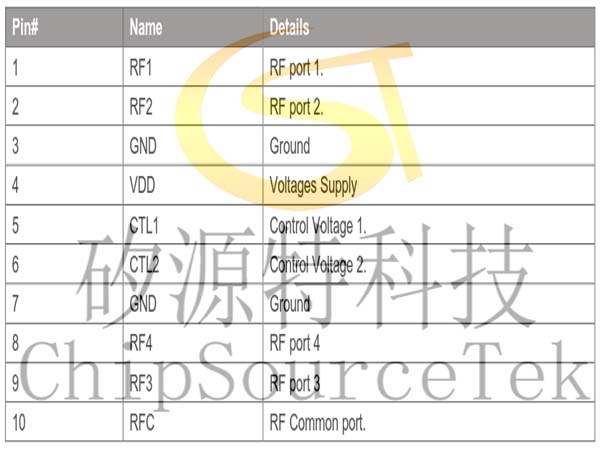

    FM8545引脚说明:



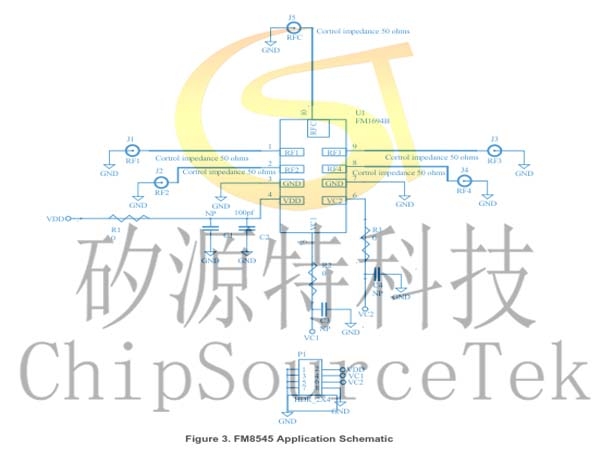

    FM8545应用示意图:
