PE3010是VDS=30V,ID=10A，RDS(ON)<10mΩ，@VGS=10V，RDS(ON)<15mΩ，@VGS=4.5V的N-Channel MOSFET.
PE3010的丝印是3010.PE3010提供SOP-8封装.

The PE3010 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

PE3010概述：

PE3010是VDS=30V,ID=10A，RDS(ON)<10mΩ，@VGS=10V，RDS(ON)<15mΩ，@VGS=4.5V的N-Channel MOSFET.PE3010的丝印是3010.PE3010提供SOP-8封装.

The PE3010 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of applications.

PE3010特性：

VDS = 30V, ID = 10A

RDS(ON) < 10mΩ @ VGS=10V

RDS(ON) < 15mΩ @VGS=4.5V

High Power and current handingcapability

Lead free product is acquired

Surface Mount Package

PE3010应用：

PWM applications

Load switch

Power management

Battery Protection

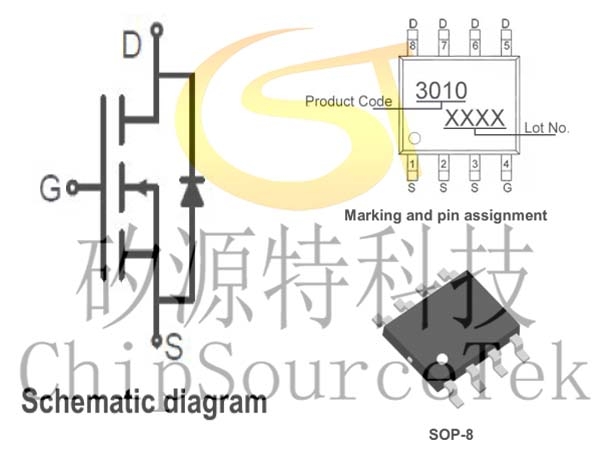

PE3010典型应用及引脚：
