CST4407A SOP8
CST4407A是一款VDS=-30V,ID=-12A的P通道快速切换mosfet.提供SOP8封装。
The CST4407A is the highest performance trench P-ch MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications
The CST4407A is the highest performance trench P-ch MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications
CST4407A Description（概述）：
CST4407A是一款VDS=-30V,ID=-12A的P通道快速切换mosfet.提供SOP8封装。
The CST4407A is the highest performance trench P-ch MOSFETs with extreme high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications .
The CST4407A meet the RoHS and Green Product requirement, 100% EAS guaranteed with full function reliability approved.
CST4407A Features（特性）：
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST4407A Product Summary（产品目录）：
BVDSS | RDSON | ID |
-30V | 9.5 mΩ | -12A |

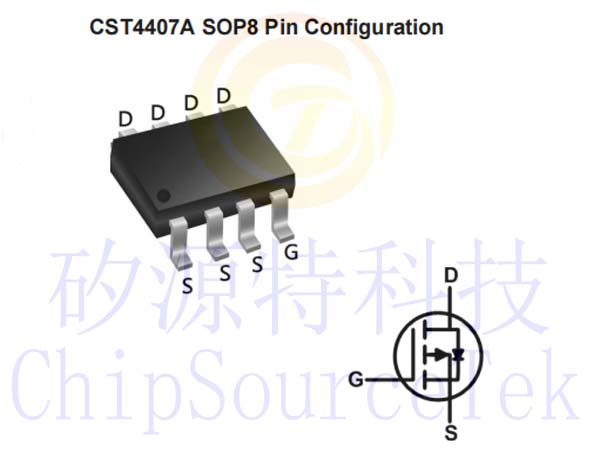

CST4407A SOP8 Pin Configuration（引脚配置）：
.jpg)

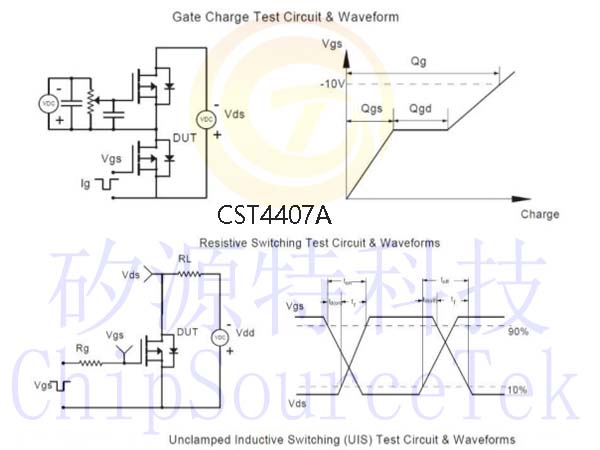

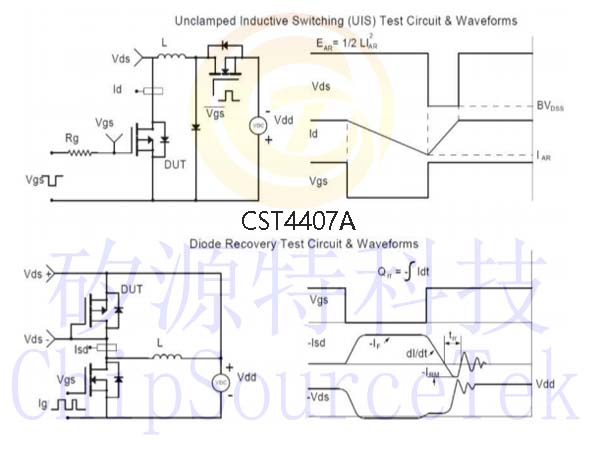

CST4407A Test Circuit（测试电路）：
.jpg)
.jpg)
