CST50G30F PDFN5060-8L
CST50G30F是N-Ch：BVDSS=30V,RDSON=7.5mΩ,ID=45A;P-Ch：BVDSS=-30V,RDSON=8.7mΩ,ID=-45A的N+P双通道快速切换Mosfets。
提供PDFN5060-8L封装。
提供PDFN5060-8L封装。
CST50G30F Description/描述：
CST50G30F是N-Ch：BVDSS=30V,RDSON=7.5mΩ,ID=45A;P-Ch：BVDSS=-30V,RDSON=8.7mΩ,ID=-45A的N+P双通道快速切换Mosfets。提供PDFN5060-8L封装。
The CST50G30F is th high performance complementary N-ch and P-ch MOSFETs with high cell density, which provide excellent RDSON and gate charge for most of the synchronous buck converter applications.
The CST50G30F meet the RoHS and Green Product requirement 100% EAS guaranteed with full function reliability approved.
CST50G30F Features/特性:
100% EAS Guaranteed
Green Device Available
Super Low Gate Charge
Excellent CdV/dt effect decline
Advanced high cell density Trench technology
CST50G30F Product Summary/产品概览：
BVDSS | RDSON | ID |
30V | 7.5mΩ | 45A |
-30V | 8.7mΩ | -45A |

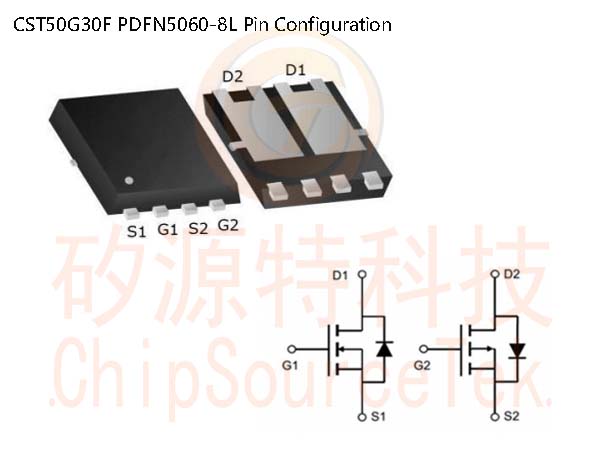

CST50G30F PDFN5060-8L Pin Configuration/引脚配置：

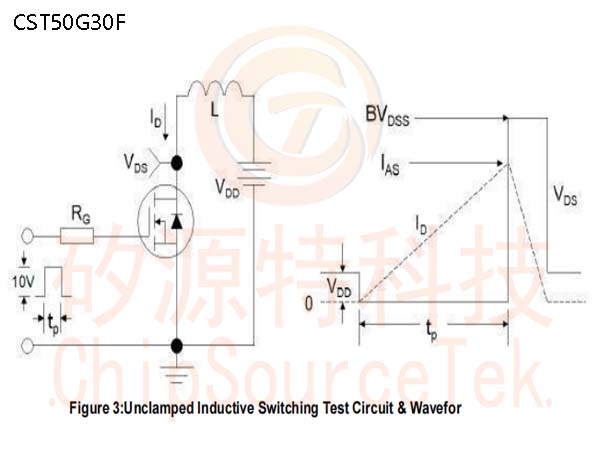

CST50G30F Test Circuit-N/测试电路-N:
CST50G30F Test Circuit-P/测试电路-P:
