Touch MCU

CST5106L

    CST5106L is a high-performance self-capacitor touch controller that supports various self-capacitor sensor patterns and has excellent signal-to-noise ratio to achieve high accuracy and linearity while maintaining ultra-low power consumption. It is very suitable for portable mobile devices such as smart watches and smart bracelets.
    CST5106L General Description:
        CST5106L is a high-performance self-capacitor touch controller that supports various self-capacitor sensor patterns and has excellent signal-to-noise ratio to achieve high accuracy and linearity while maintaining ultra-low power consumption. It is very suitable for portable mobile devices such as smart watches and smart bracelets.

    CST5106L Features:
    * Key features
      -Highly sensitive self-capacitance detection technology
      -Support up to 13 channels
      -The maximum screen size is 3 inches
      -Support GF, GG, OGS and other screen structure
      -Support various ITO Sensor patterns (triangles, squares, etc.)
      -Support three work modes: Normal mode, Idle mode, Sleep mode
      -The sleep mode power consumption is as low as 8uA, the Idle mode consumption is as low as 400uA,and the normal mode power consumption is as low as 2mA
      -Touch point report rate up to 120Hz;
      -Auto calibration
      -Supports I2C interfaces
      -Support online programming
      -Single power supply 2.7V to 3.6V
      -Package:QFN20 3x3x0.55mm
      -The CST5106L is dedicated for self-capacitive touch panel; its typical applications are listed as follows:
        Smart watch, Smart bracelet
        GPS navigator
        Digital camera
        Game consoles
        Portable media player

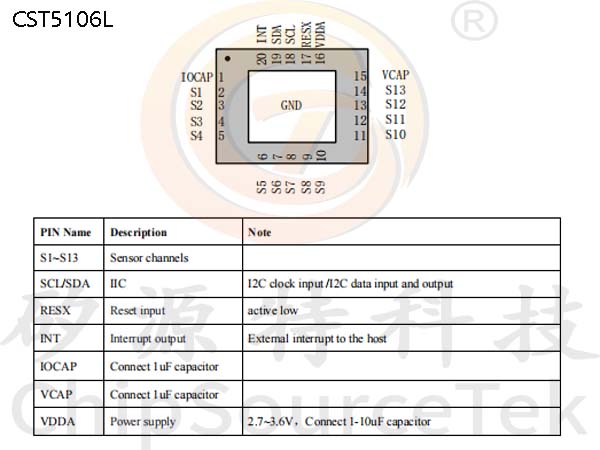

    CST5106L Pin layout:

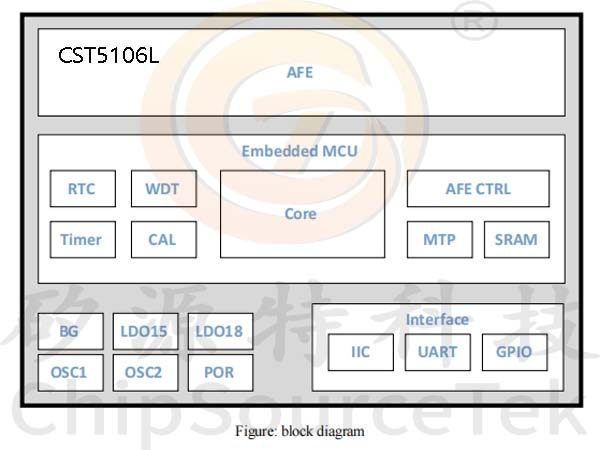

    CST5106L Block diagram:
    CST5106L Work modes:
    There are three work modes available:
      -Normal mode
      -Idle mode
      -Sleep mode

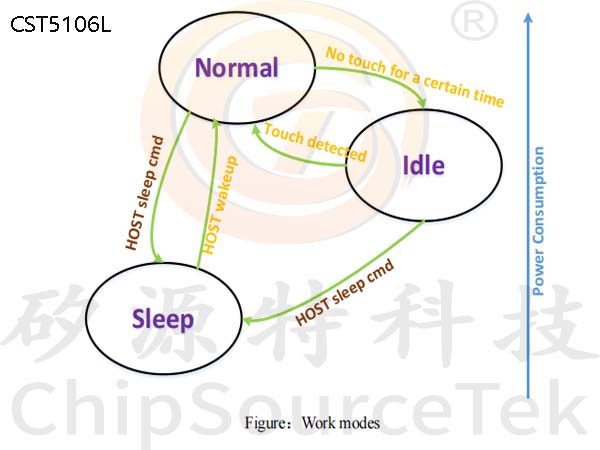

    Work modes switching conditions are shown as below:

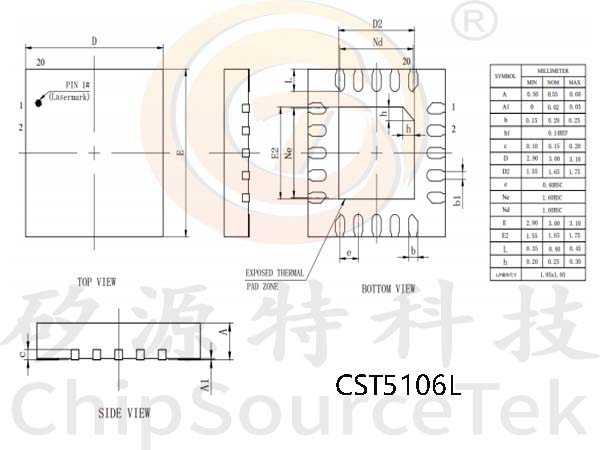

    CST5106L Package:
    CST5106L Ordering information:
    Product
    Package
    Packing
    Ordering
    Minimum Order
    CST5106L
    20-pin 3x3x0.55mm QFN
    TR
    CST5106L
    5000
