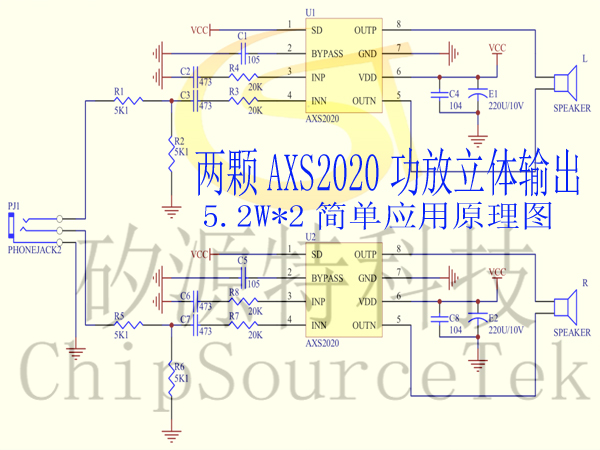

Simple application schematic diagram of two AXS2020 power amplifiers with dual channel stereo output 5.2w*2

Time:2022-06-07 Views:2122

Class AB and class D switching functions
Two kinds of anti breaking sound are available, and the anti breaking sound compression range is -10db
Class D output power:
   -5.2W (VDD=5.0V, RL =2Ω,THD+N=10%)
    -3.1W (VDD=5.0V, RL =4Ω,THD+N=10%)
Class AB output power:
    -5.2W (VDD=5.0V, RL =2Ω,THD+N=10%)
    -3.1W (VDD=5.0V, RL =4Ω,THD+N=10%)
Operating voltage:2.5V to 5.5V
Low distortion and low noise
Enable and disable pop click suppression function
Turn off current (<1ua)
OCP, OTP, UVLO protection function
