TX6250

    The TX6250 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies.

    The TX6250 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to a load variations have improved in comparison to the existing series.
    TX6250 General Description:
        The TX6250 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies.
        The TX6250 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to a load variations have improved in comparison to the existing series.

    TX6250 Features:
    Low voltage drop: 0.06V@100mA
    High input voltage: 8.5V
    Low temperature coefficient
    Low Quiescent Current: 25uA at 5.0V
    Output voltage accuracy: tolerance ±2%
    SOT23-5 ,SOT89 and SOT223 packages

    TX6250 Applications:
    Battery-powered equipment
    Hand-Hold Equipment
    GRS Receivers
    Wireless LAN

    TX6250 Order Information:
    TX6250①②③④
    Designator
    Symbol
    Description
    P
    Package:SOT89A
    PB
    Package:SOT89B
    M5
    Package:SOT23-5
    GB
    Package:SOT223B
    ②③
    Integer
    Output Voltage(0.8~5.0V)
    R
    RoHS / Pb Free
    G
    Halogen Free

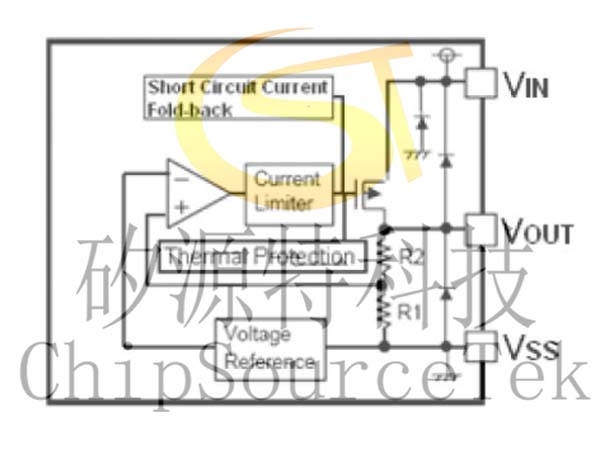

    TX6250 Block Diagram:

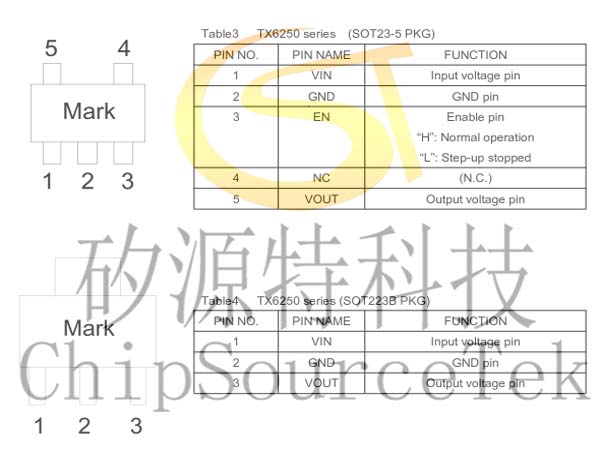

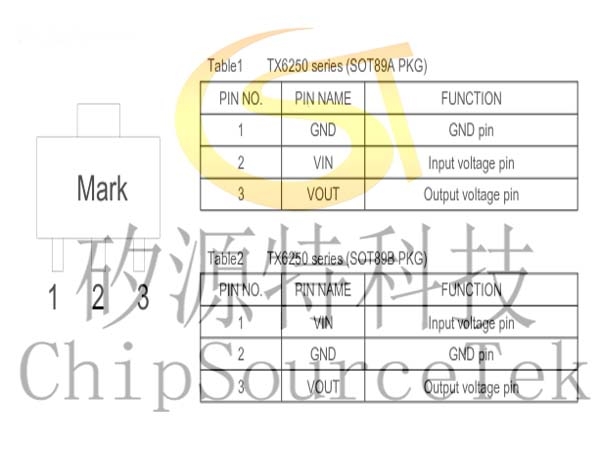

    TX6250 Pin Assignment:


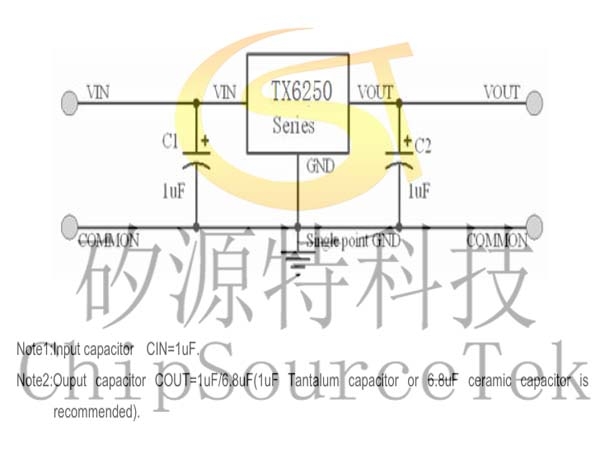

    TX6250 Application Circuits:
