LDO

TX71XXM

    The TX71XXM series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 15V. They are available with several fixed output voltages ranging from 2.1V to 5.0V.

    CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
    TX71XXM General Description:
        The TX71XXM series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 15V. They are available with several fixed output voltages ranging from 2.1V to 5.0V.
        CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.

    TX71XXM Features:
    Low power consumption
    Low voltage drop
    Low temperature coefficient
    High input voltage (up to 15V)
    Output voltage accuracy: tolerance ±2%
    TO92, SOT89 ,SOT23-3and SOT23 package

    TX71XXM Applications:
    Battery-powered equipment
    Communication equipment
    Audio/Video equipment

    TX71XXM Selection Table:
    Part No.
    Output Voltage
    Package
    Marking
    TX7121Mxx
    2.1V
    TO92
    SOT89
    SOT23-3
    SOT23
    71XXA-1(for TO92)
    71XX-1(for SOT89)
    HTXX(for SOT23-3)
    HTXX(for SOT23)

    TX7123Mxx
    2.3V
    TX7125Mxx
    2.5V
    TX7127Mxx
    2.7V
    TX7130Mxx
    3.0V
    TX7133Mxx
    3.3V
    TX7136Mxx
    3.6V
    TX7144Mxx
    4.4V
    TX7150Mxx
    5.0V
    TX71XXM Order Information:
    TX71①②③④⑤
    Designator
    Symbol
    Description
    ①②
    Integer
    Output Voltage(1.5~5.0V)
    M
    Standard
    T
    Package:TO-92
    P
    Package:SOT89
    M
    Package:SOT23-3
    N
    Package:SOT23
    R
    RoHS/Pb Free
    G
    Halogen Free

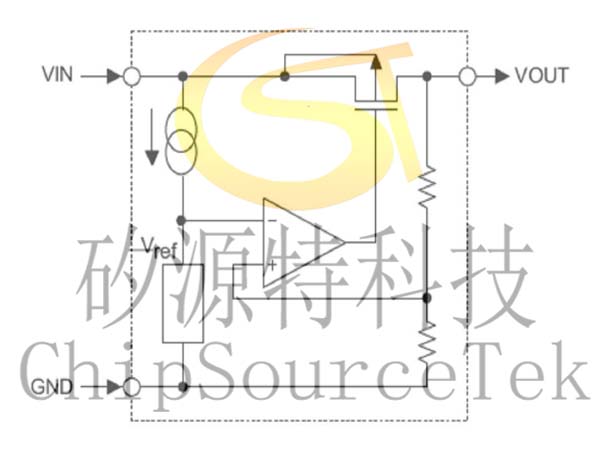

    TX71XXM Block Diagram:

    TX71XXM Pin Assignment:

    TX71XXM Application Circuits:

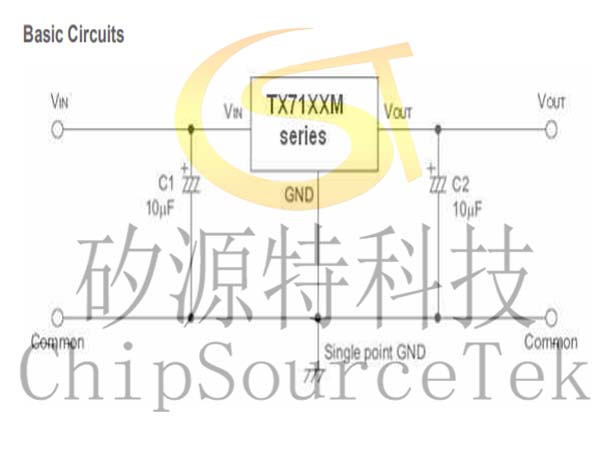

    Basic Circuits

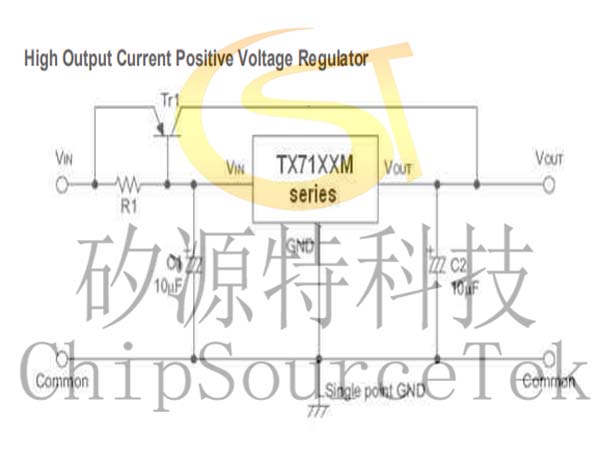

    High Output Current Positive Voltage Regulator

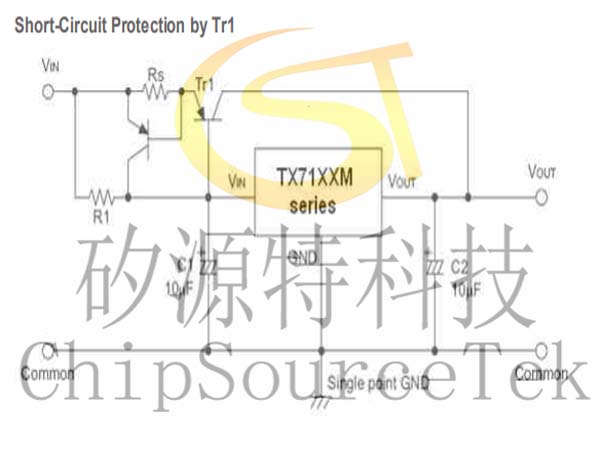

    Short-Circuit Protection by Tr1

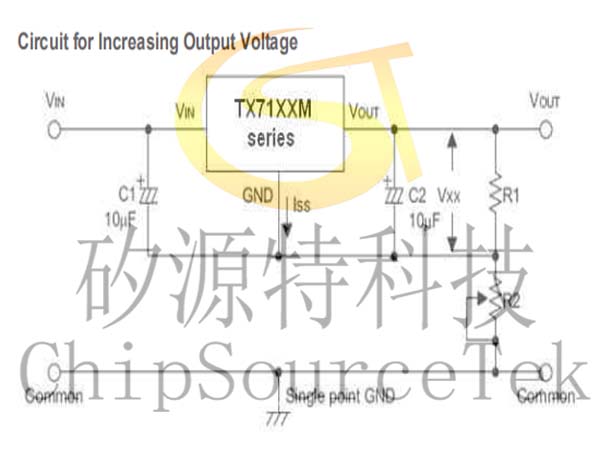

    Circuit for Increasing Output Voltage

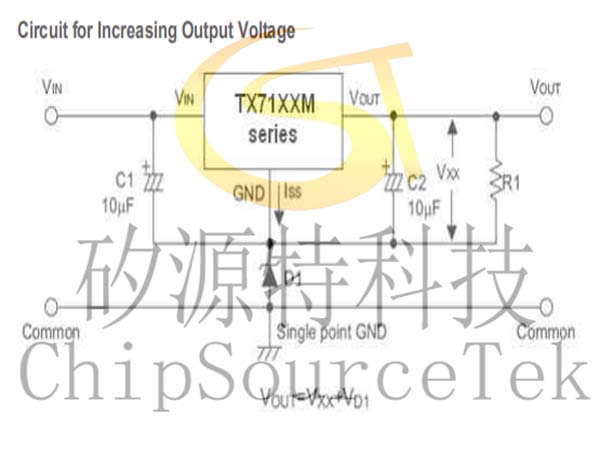

    Circuit for Increasing Output Voltage

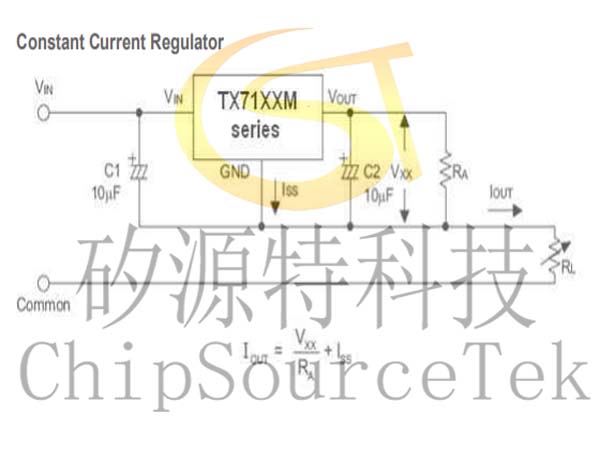

    Constant Current Regulator

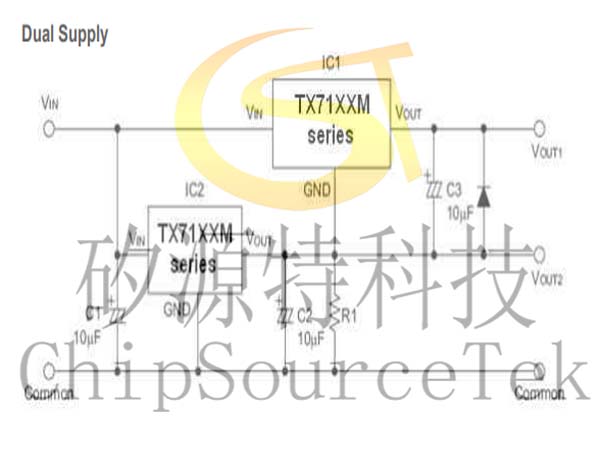

    Dual Supply
