Development of 5W wireless charging scheme

Time:2021-12-07 Views:2360
The company has a professional development team to help customers develop solutions free of charge

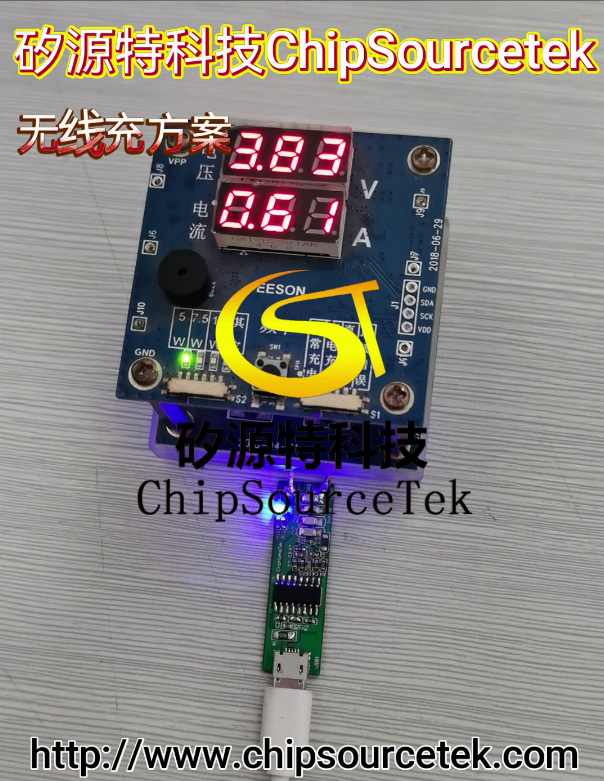

Development of 5W wireless charging scheme
The 5W wireless charging scheme adopts SOP16 package chip
This 5W wireless charging solution provides a complete and highly integrated 5W wireless charging transmitter solution, which can significantly reduce the PCB size and BOM cost,
Input voltage 4.5-5.5v integrated full bridge drive and power NMOS support foreign object detection
Integrated input undervoltage protection
Input Overvoltage Protection
Chip internal over stability protection
Static power consumption as low as 5mA
Charging efficiency up to 80%
Compatible with NPO capacitor and CBB capacitor
Dual LED indication
Support customer customization
