Music rhythm lamp scheme, music rhythm lamp scheme, pickup lamp scheme

Time:2021-11-30 Views:2420
The company has a professional development team to help customers develop solutions free of charge


Music rhythm light speaker MCU schememusic rhythm light speaker MCU schemepickup light speaker MCU scheme

1: LED lights pulsate regularly with the rhythm of music, pulsing mode
2: Gradient mode
3: Fixed mode
4: Off mode
5: Support custom functions

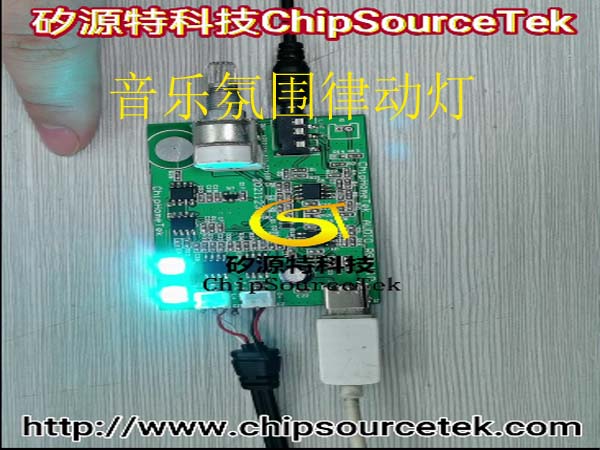

    With the change of music rhythm, the greater the sound, the greater the brightness of LED, and vice versa. Working principle: use microphone to detect sound, send it to ADC for sampling after op amp processing, and get a sampling value corresponding to sound size. The program processes the sampling value and assigns it directly to the PWM register. In this way, different volume corresponds to different duty cycle. At this time, the LED at the output pin will change with the sound. Then, drive higher power LED. Here, 3W lamp beads are used, and components such as light barrier triode are used.











    ChipSourceTek focuses on the design and development of MCU application scheme, and provides 8-bit MCU, 32-bit MCUaudio, driverMOSFETcharging managementlithium protectiontouch controlDC-DCAC-DCPD protocolMCU5g emissionspecial chip, etc.
